A printer was what turned a home computer into an office one: letters, listings of programs to read away from the screen, reports. The Apple II had no printer port of its own; a card in a slot gave it one, and the Apple Parallel Interface Card was Apple’s, for the printers with a parallel cable, of the Centronics kind. BASIC sends its output to the card with PR# and the number of the slot, and back to the screen with PR#0.

This page types a program that makes a calendar of a year, prints its listing, and then runs it on the printer: three months across, more than the 40 columns of the screen could show. izapple2 writes what the card prints to a file.

What you need

Only izapple2. The ROM of the Apple ][+ and the one of the card come inside it, and the program is typed in.

The manual of the card, the Apple II Parallel Printer Interface Card Installation and Operating Manual, is on the Internet Archive.

The machine

An Apple ][+ with a printer:

the 6502 processor at 1 MHz, 48 KB of memory, and Applesoft BASIC in its ROM;
the keyboard of the ][+, which types only capitals;
an Apple Parallel Interface Card in slot 1, with a printer that is a file: what the card prints goes to printer.out, in the folder izapple2 runs in;
no disk drive.

izapple2 -model none -board 2plus -cpu 6502 -screen green \
    -rom "<internal>/Apple2_Plus.rom" \
    -charrom "<internal>/Apple2rev7CharGen.rom" -forceCaps \
    -s1 parallel,file=printer.out

The model 2plus of izapple2 has this machine with -s1 parallel, and a Language Card, a Videx Videoterm 80 column card and a Disk II controller with DOS 3.3 more:

izapple2 -model 2plus -screen green -s1 parallel

The program

Start izapple2 with the command above, and type the program, a line at a time. It is in listings/calendar.bas too. First the names and lengths of the months, from the DATA at the end, February with 29 days in a leap year, and the day of the week of the first of January:

10 REM A CALENDAR OF A YEAR, FOR THE PRINTER
20 DIM D(12),N$(12),R$(3,6)
30 FOR M = 1 TO 12: READ N$(M),D(M): NEXT M
40 B$ = "                     "
50 INPUT "YEAR? ";Y
60 IF Y / 4 = INT (Y / 4) AND (Y / 100 < > INT (Y / 100) OR Y / 400 = INT (Y / 400)) THEN D(2) = 29
70 REM THE DAY OF THE WEEK OF JANUARY 1, 0 FOR SUNDAY
80 Z = Y - 1:W = Z + INT (Z / 4) - INT (Z / 100) + INT (Z / 400) + 1
90 W = W - INT (W / 7) * 7

Then, for each quarter, the three months are laid out in rows of weeks, a string for each week of each month, the first one starting with blanks up to the first day:

100 PR# 1
120 PRINT : PRINT SPC( 30);Y: PRINT
130 FOR Q = 0 TO 3
140 FOR K = 1 TO 3:M = Q * 3 + K
150 FOR R = 1 TO 6:R$(K,R) = "": NEXT R
160 IF W > 0 THEN R$(K,1) = LEFT$ (B$,W * 3)
170 FOR I = 1 TO D(M)
180 R = INT ((W + I - 1) / 7) + 1
190 R$(K,R) = R$(K,R) + RIGHT$ (" " + STR$ (I),2) + " "
200 NEXT I
210 W = W + D(M):W = W - INT (W / 7) * 7
220 NEXT K

And printed: the names centred over their months, the days of the week, and the weeks of the three months side by side, 24 characters each. PR# 1 at line 100 sent all of it to the printer, and PR# 0 brings the output back to the screen:

230 L$ = ""
240 FOR K = 1 TO 3:M = Q * 3 + K:P = INT ((21 - LEN (N$(M))) / 2)
250 L$ = L$ + LEFT$ (B$,P) + N$(M) + LEFT$ (B$,24 - P - LEN (N$(M))): NEXT K
260 PRINT L$
270 PRINT "SU MO TU WE TH FR SA   SU MO TU WE TH FR SA   SU MO TU WE TH FR SA"
280 FOR R = 1 TO 6:L$ = ""
290 FOR K = 1 TO 3:L$ = L$ + LEFT$ (R$(K,R) + B$,24): NEXT K
300 PRINT L$
310 NEXT R
320 PRINT
330 NEXT Q
340 PR# 0
350 END

400 DATA JANUARY,31,FEBRUARY,28,MARCH,31,APRIL,30,MAY,31,JUNE,30
410 DATA JULY,31,AUGUST,31,SEPTEMBER,30,OCTOBER,31,NOVEMBER,30,DECEMBER,31

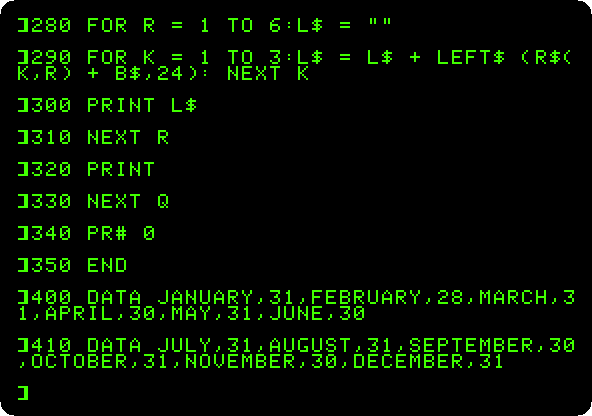

The program typed

Printed

Type PR#1, LIST 10,90 and PR#0. Everything the machine writes goes to the printer as well as to the screen while slot 1 has the output, the commands typed included. The listing is printed as LIST puts it on the screen, folded the same way:

]LIST 10,90

10  REM  A CALENDAR OF A YEAR, FO
     R THE PRINTER
20  DIM D(12),N$(12),R$(3,6)
30  FOR M = 1 TO 12: READ N$(M),D
     (M): NEXT M
40 B$ = "                     "
50  INPUT "YEAR? ";Y
60  IF Y / 4 =  INT (Y / 4) AND (
     Y / 100 <  >  INT (Y / 100) OR
     Y / 400 =  INT (Y / 400)) THEN
     D(2) = 29
70  REM  THE DAY OF THE WEEK OF J
     ANUARY 1, 0 FOR SUNDAY
80 Z = Y - 1:W = Z +  INT (Z / 4)
      -  INT (Z / 100) +  INT (Z /
     400) + 1
90 W = W -  INT (W / 7) * 7


]PR#0

Type RUN, and 1977 for the year. The program works out each quarter and prints it. On the screen, the lines of nearly 70 characters fold over and over:

The screen while it prints

On the paper, the year of the Apple II, as it came out of printer.out:

                              1977

       JANUARY                FEBRUARY                  MARCH
SU MO TU WE TH FR SA   SU MO TU WE TH FR SA   SU MO TU WE TH FR SA
                   1           1  2  3  4  5           1  2  3  4  5
 2  3  4  5  6  7  8     6  7  8  9 10 11 12     6  7  8  9 10 11 12
 9 10 11 12 13 14 15    13 14 15 16 17 18 19    13 14 15 16 17 18 19
16 17 18 19 20 21 22    20 21 22 23 24 25 26    20 21 22 23 24 25 26
23 24 25 26 27 28 29    27 28                   27 28 29 30 31
30 31

        APRIL                    MAY                    JUNE
SU MO TU WE TH FR SA   SU MO TU WE TH FR SA   SU MO TU WE TH FR SA
                1  2     1  2  3  4  5  6  7              1  2  3  4
 3  4  5  6  7  8  9     8  9 10 11 12 13 14     5  6  7  8  9 10 11
10 11 12 13 14 15 16    15 16 17 18 19 20 21    12 13 14 15 16 17 18
17 18 19 20 21 22 23    22 23 24 25 26 27 28    19 20 21 22 23 24 25
24 25 26 27 28 29 30    29 30 31                26 27 28 29 30


        JULY                   AUGUST                 SEPTEMBER
SU MO TU WE TH FR SA   SU MO TU WE TH FR SA   SU MO TU WE TH FR SA
                1  2        1  2  3  4  5  6                 1  2  3
 3  4  5  6  7  8  9     7  8  9 10 11 12 13     4  5  6  7  8  9 10
10 11 12 13 14 15 16    14 15 16 17 18 19 20    11 12 13 14 15 16 17
17 18 19 20 21 22 23    21 22 23 24 25 26 27    18 19 20 21 22 23 24
24 25 26 27 28 29 30    28 29 30 31             25 26 27 28 29 30
31

       OCTOBER                NOVEMBER                DECEMBER
SU MO TU WE TH FR SA   SU MO TU WE TH FR SA   SU MO TU WE TH FR SA
                   1           1  2  3  4  5                 1  2  3
 2  3  4  5  6  7  8     6  7  8  9 10 11 12     4  5  6  7  8  9 10
 9 10 11 12 13 14 15    13 14 15 16 17 18 19    11 12 13 14 15 16 17
16 17 18 19 20 21 22    20 21 22 23 24 25 26    18 19 20 21 22 23 24
23 24 25 26 27 28 29    27 28 29 30             25 26 27 28 29 30 31
30 31

The Apple sends its characters with the top bit set, as it keeps them in memory, and ends each line with a carriage return and a line feed, so printer.out looks odd in an editor. This turns it into plain text on a Mac or on Linux:

LC_ALL=C tr '\200-\377' '\000-\177' < printer.out | tr -d '\r'

What next

A game in Applesoft is another program typed into the same machine, for the screen this time.
