A game in Applesoft: the snake

Back to the activities

The magazines of the eighties printed games for their readers to type in, pages of BASIC, and typing them was how many learnt to program. The snake, which grows each time it eats and must never run into a wall or into itself, was one of the simplest worth playing, and fits the low resolution graphics of the Apple II, 40 blocks by 40 in 16 colours, well.

This page types a snake of 35 lines of Applesoft on an Apple ][+, a part at a time, runs it, and plays it.

What you need

Only izapple2, as in Switch on an Apple ][+: nothing to download. The program is in this repository, listings/snake.bas.

The Applesoft Tutorial, Apple’s manual to learn Applesoft, is on the Internet Archive.

The machine

An Apple ][+ with no disk drive:

• the 6502 processor at 1 MHz, 48 KB of memory, and Applesoft BASIC in its ROM;
• the keyboard of the ][+, which types only capitals;
• no cards in its slots.

izapple2 -model none -board 2plus -cpu 6502 -screen color \
    -rom "<internal>/Apple2_Plus.rom" \
    -charrom "<internal>/Apple2rev7CharGen.rom" -forceCaps

The model 2plus of izapple2 has this machine, with a Language Card and a Videx Videoterm 80 column card more:

izapple2 -model 2plus -screen color -s6 empty

The program

1. Start izapple2 with the command above.

2. Type the program, each line with Return. Here it is in parts, with what each does.

   The start: the arrays that remember where the snake has been, the low resolution graphics with four lines of text below, GR, and a wall around the field, in white, colour 15. The snake starts as its head, in yellow, colour 13, going right; L is the length it is allowed:

   10 REM SNAKE, IN THE LOW RESOLUTION GRAPHICS
   20 DIM X(400),Y(400)
   30 GR : HOME
   40 COLOR= 15: HLIN 0,39 AT 0: HLIN 0,39 AT 39: VLIN 0,39 AT 0: VLIN 0,39 AT 39
   50 H = 1:T = 1:N = 1:L = 4:S = 0
   60 X(1) = 20:Y(1) = 20:DX = 1:DY = 0
   70 COLOR= 13: PLOT 20,20
   80 GOSUB 500
   90 VTAB 21: PRINT "I, J, K, L TURN THE SNAKE"


   The game, a step at a time. Line 110 looks at the keyboard without waiting: PEEK(-16384) is the last key, with the top bit set when it is new, and POKE -16368,0 clears it. Line 120 works out the next block, and SCRN tells what is there: the wall or the body, green, colour 12, ends the game. The head becomes body, the new head is drawn, food, orange, colour 9, makes the snake longer and puts new food, and when the snake is longer than allowed its tail is rubbed out, in black. The empty loop of line 200 sets the speed of the game:

   100 REM THE GAME, A STEP AT A TIME
   110 K = PEEK ( - 16384): IF K > 127 THEN POKE - 16368,0:K = K - 128: GOSUB 400
   120 NX = X(H) + DX:NY = Y(H) + DY:C = SCRN( NX,NY)
   130 IF C = 15 OR C = 12 THEN 900
   140 COLOR= 12: PLOT X(H),Y(H)
   150 H = H + 1: IF H > 400 THEN H = 1
   160 X(H) = NX:Y(H) = NY: COLOR= 13: PLOT NX,NY:N = N + 1
   170 IF C = 9 THEN S = S + 10:L = L + 3: GOSUB 500
   180 IF N > L THEN COLOR= 0: PLOT X(T),Y(T):T = T + 1:N = N - 1: IF T > 400 THEN T = 1
   190 VTAB 23: HTAB 1: PRINT "SCORE ";S;" ";
   200 FOR D = 1 TO 40: NEXT D: GOTO 110


   The keys change the direction, but never to the opposite one, which would run the snake into itself: I, J, K and L, or the arrows, whose codes are there for the //e:

   400 REM THE KEYS, AND NO TURNING BACK
   410 IF (K = 73 OR K = 11) AND DY = 0 THEN DX = 0:DY = - 1
   420 IF (K = 75 OR K = 10) AND DY = 0 THEN DX = 0:DY = 1
   430 IF (K = 74 OR K = 8) AND DX = 0 THEN DX = - 1:DY = 0
   440 IF (K = 76 OR K = 21) AND DX = 0 THEN DX = 1:DY = 0
   450 RETURN


   The food goes in a block chosen by chance with RND, tried again until it is empty:

   500 REM FOOD, WHERE THERE IS ROOM
   510 FX = INT ( RND (1) * 38) + 1:FY = INT ( RND (1) * 38) + 1
   520 IF SCRN( FX,FY) < > 0 THEN 510
   530 COLOR= 9: PLOT FX,FY
   540 RETURN


   And the end, with the question of another game, which RUN starts:

   900 REM THE END
   910 VTAB 24: HTAB 1: PRINT "GAME OVER. AGAIN (Y/N)? ";
   920 GET A$: IF A$ = "Y" THEN RUN
   930 TEXT : HOME : PRINT "SCORE ";S: END

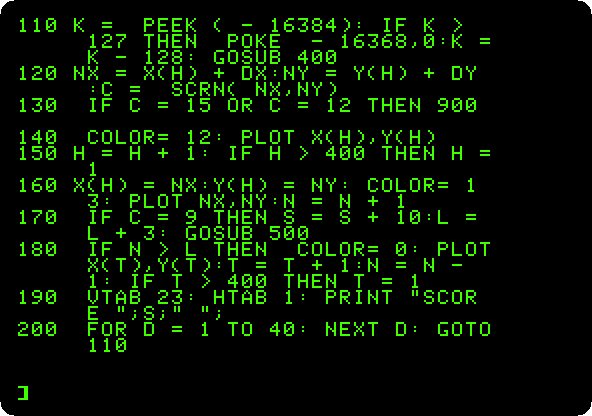

3. Type HOME and LIST 100,200 to see the heart of the game as Applesoft keeps it, with its own spacing:



Play

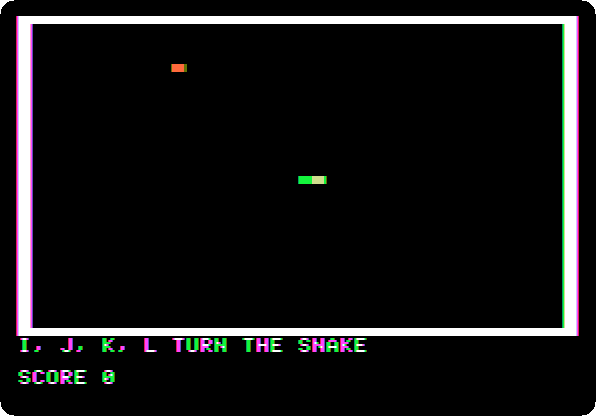

1. Type RUN. The field, the snake going right, and the first food.



2. Play: I up, J left, K down and L right. The recording is of the first six meals, at the speed of the machine, played by the generator of the pictures, which reads where the head and the food are in the memory of the screen and turns towards the food, away from the walls, the snake, and any corner too small to get out of.



   Each meal is 10 points and three blocks more of snake. After twenty:

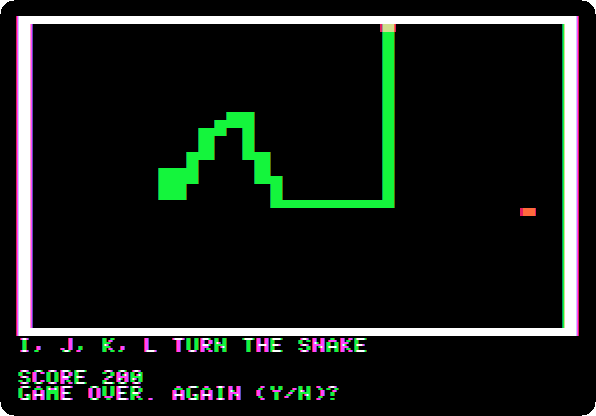

3. Run into the wall. The game ends and asks for another; N ends the program.



What next

A game in Applesoft is the other game typed in on these pages, played with the paddle.
